TL;DR

BIM drawing visual hierarchy is the deliberate ordering of cut elements, projected geometry, context, overhead information, annotations, and secondary detail. A readable view makes the design decision obvious at its intended scale. Define a small hierarchy, apply it consistently, test representative views, and inspect the final PDF or plotted output rather than approving only the live model.

What is BIM drawing visual hierarchy?

BIM drawing visual hierarchy is the visual order that tells a reader what matters first, second, and third. In a plan, elements cut by the view usually carry more weight than objects seen beyond. Primary enclosure and structure should read before furniture, surface patterns, context, and annotation. In a section, the cut profile should anchor the view while information in depth becomes progressively lighter.

Hierarchy is not decoration. It communicates spatial boundaries, construction relationships, circulation, change, and scope. When everything has the same weight, the reader must reconstruct the model mentally. When too little is shown, the view loses context. The goal is not maximum contrast. It is controlled contrast tied to the drawing’s purpose.

Define the purpose first. A concept review plan, coordination plan, code plan, presentation plan, and construction document may use the same model but need different emphasis. One universal graphic preset cannot answer every question.

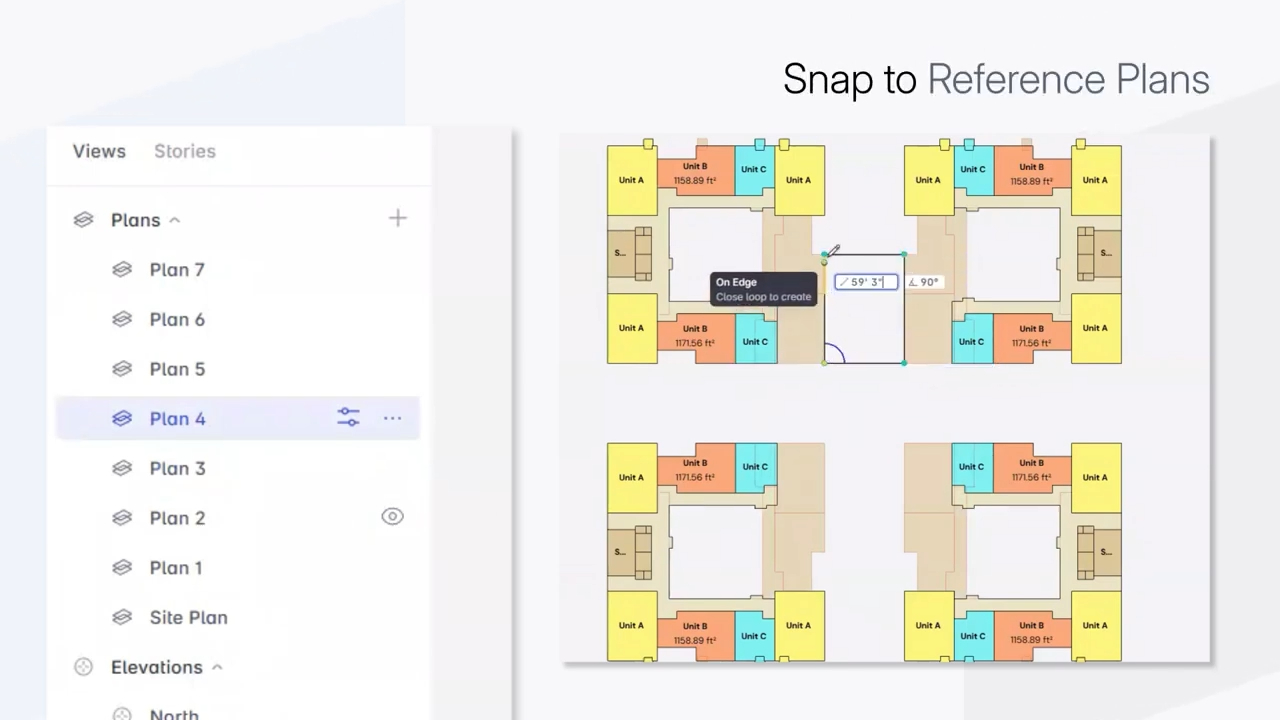

See how model-linked architectural drawings can reduce static-file handoffs.

How should cut and projected elements be ordered?

Use a compact hierarchy that the team can explain.

The cut plane is a geometric rule, not merely a visual style. Confirm which objects the view intersects, how sloped or multistory conditions are treated, and whether hosted elements inherit the expected representation. A heavy line applied to an object that is not actually cut may make the drawing look plausible while communicating the wrong condition.

Use depth deliberately. In a section, reduce detail and contrast as geometry recedes. In a plan, distinguish elements above, below, and beyond the primary view range. Underlays and overlays should provide orientation without reading as current-floor scope.

Avoid using color as the only carrier of hierarchy. Many drawings are printed in grayscale, viewed on low-quality displays, or reproduced at reduced size. Line, value, pattern, spacing, and labeling should preserve meaning independently.

How do view scale and output change line hierarchy?

A line-weight system works only at its intended output size. A difference that looks obvious at 200 percent zoom may disappear on a reduced PDF. Dense hatches may merge. Fine furniture lines may compete with walls. Small text may remain technically present but become unusable.

Test at three conditions:

Check both full-size and common reduced output. If reviewers often open drawings on laptops, inspect that case. If a permitting set will be printed, produce a representative physical sheet. The goal is not to optimize for every possible display. It is to verify the actual review and delivery conditions.

Line weights should form recognizable steps. Too many nearly identical weights create administrative complexity without perceptual value. Start with a small set for primary cut, secondary cut, near projection, distant context, and annotation. Add exceptions only when a repeated communication problem justifies them.

Review drawings and views together in Present Mode.

How should a BIM team test drawing readability?

Choose representative views instead of inspecting only the cleanest sheet. Include a crowded plan, a section with several depth layers, a stair or atrium, a façade with surface patterns, a reflected or overhead condition, and a view with imported context.

Run a five-pass review:

Then use task-based questions. Can a client understand circulation? Can a consultant find the controlling geometry? Can a reviewer distinguish an opening from a line crossing? Can the project team identify which level or building is active? Can a contractor trace a section reference and understand what is cut?

Do not approve a view solely because its settings match a template. A template can apply consistent rules, but unusual geometry, linked content, local overrides, and export behavior can still undermine the result. Review the visible outcome and the model state that produced it.

What causes flat or confusing BIM drawings?

The most common cause is equal emphasis. Imported CAD layers, model categories, annotation families, and surface patterns may each carry their own defaults. When combined, their line weights and tones compete.

Other causes include:

Repair the system in priority order. Fix the cut and primary silhouette first, then depth, context, annotation, and surface texture. Adjusting every category at once makes it hard to see which rule improved the drawing.

Use comparison views during calibration. Put the previous accepted output beside the revised result at the same scale. Record the reason for each intentional difference. See how colored views can preserve classification context during reviews.

How can Snaptrude support clear architectural drawings?

Verified product facts state that Snaptrude supports connected concept modeling, BIM objects and data, drawings, presentation, real-time collaboration, and several exports. It also supports 2D and 3D work in a browser-based environment. Those capabilities help keep views close to the model and make review more immediate.

They do not eliminate graphic judgment. Teams should define the purpose, scale, cut behavior, depth hierarchy, annotation rules, and output checks for each drawing type. Confirm current controls in the product and test representative PDF, DWG, Revit, or IFC workflows when those outputs are part of delivery.

FAQ: Frequently Asked Questions

What is the basic line-weight hierarchy for an architectural plan?

Start with the strongest treatment for primary cut elements, a secondary treatment for less important cut work, a medium treatment for nearby projected geometry, a lighter treatment for distant context, and a consistent annotation family. Surface patterns and furniture should remain subordinate. Test the hierarchy at the intended sheet scale and output method.

Why do BIM drawings look flat even when the model is correct?

The view may give similar weight to cut, projected, contextual, and annotated information. Imported layers, local overrides, dense patterns, view range, and export settings can also collapse distinctions. Repair the primary silhouette first, then add depth and context. A correct model does not automatically produce a readable graphic explanation.

How should cut planes affect visual hierarchy?

Objects intersected by the cut plane should normally anchor the drawing with the clearest profile or poche. Projected objects beyond the cut should be lighter, with further geometry reduced again. Confirm the actual view range and object behavior before styling. A heavy outline on uncut geometry can communicate a false spatial condition.

Should every view use the same BIM graphic settings?

No. A firm should use consistent principles and reusable presets, but each view type has a different purpose. Concept, coordination, code, presentation, and construction views emphasize different information. Use a named baseline, allow reviewed exceptions, and avoid unexplained local overrides. Consistency means predictable intent, not identical visibility in every view.

How do teams review drawing hierarchy on screen?

Inspect the complete sheet at its intended scale, then zoom only to diagnose issues. Test a delivered PDF on a common laptop and, where relevant, a physical print. Ask a reviewer who did not author the view to identify cut boundaries, depth, circulation, annotations, and scope. Record failures as communication problems, not personal preference.

Does Snaptrude automatically guarantee readable line hierarchy?

No product can guarantee legibility without a defined drawing purpose and team review. Snaptrude supports connected model, drawing, presentation, and export workflows, but teams must set and verify graphic priorities. The approved facts do not claim automatic compliance with every office or national standard. Test representative views in the final delivery format.
