TL;DR

Residential unit mix analysis compares combinations of dwelling types, sizes, tenures, accessibility needs, and target users against policy, demand, program, area, and building geometry. A credible analysis keeps assumptions visible, tests several mixes, distinguishes unit area from total building area, and reports why a scenario works rather than presenting one optimized count.

What is residential unit mix analysis?

Residential unit mix analysis is the structured comparison of dwelling combinations within a proposed development. It asks how many homes of each type, size, tenure, accessibility category, and target household group should be provided, then tests whether that mix fits the project's policy, market, brief, and design constraints.

It is more than a count of studios, one-bedroom, and two-bedroom units. Those labels can hide important differences in occupancy, internal area, layout quality, external space, accessibility, affordability, and tenure. A useful mix record therefore defines each type and connects it to evidence and geometry.

The analysis usually draws from several inputs:

• Local housing-need and policy evidence

• Client development and tenure objectives

• Target household or resident groups

• Applicable dwelling-space and accessibility standards

• Site capacity and buildable geometry

• Core, corridor, structure, daylight, and frontage constraints

• Net-to-gross assumptions and non-residential program

• Phasing, operational, and delivery requirements

UK planning guidance offers a clear example of the distinction between demand and capacity. It describes housing need as an unconstrained assessment and says the housing requirement is set after considering how many homes can be provided, supported by evidence on land availability and constraints. The same discipline applies inside a project: demand informs the brief, but geometry and other constraints determine what a specific design can responsibly support. (Housing and economic needs assessment)

Why should unit mix be tested as scenarios?

Unit mix should be tested as scenarios because a single spreadsheet solution can hide the tradeoffs between household needs, area, efficiency, and building form. Several combinations may meet the same total home count while producing very different floor plates, facades, cores, corridor lengths, and development outcomes.

A scenario is a complete, internally consistent set of assumptions. It should identify unit definitions, target counts or shares, average or minimum areas, tenure and accessibility rules, net-to-gross basis, and any policy or market evidence. Comparing scenarios makes the impact of each decision visible.

Do not compare only the final count. A scenario with more homes may depend on a higher efficiency assumption, smaller average area, a reduced shared program, or a geometry that has not been laid out. Expose the input that created the improvement.

Singapore's Urban Redevelopment Authority provides a jurisdiction-specific example of why the number alone is not enough. Its dwelling-unit guidance describes a maximum-number formula as an upper bound and says actual support depends on site context, conditions, infrastructure, layout, design, and unit sizes. The exact rules apply only where stated, but the reasoning is broadly useful: a formula defines a limit or test, not a finished residential design. (URA Guidelines on Dwelling Units)

See how residential density can be tested without redrawing every option from scratch.

Explore Snaptrude with three unit-mix scenarios and compare their counts only after each has been tested against the same site and building assumptions.

How do you perform residential unit mix analysis?

Perform residential unit mix analysis by defining needs and constraints, creating a governed unit-type library, building several scenarios, testing them against area and geometry, and documenting the tradeoffs. Keep demand, policy, client targets, and modeled outputs in separate fields.

1. Define the decision

State whether the analysis supports land screening, a bid, a brief, planning, design development, or an investment decision. The required evidence and geometry will differ. An early screening range may be appropriate before survey or planning advice arrives, while a submission-stage mix needs much firmer inputs.

2. Assemble the evidence

Collect the applicable planning policy, housing-needs work, client brief, market evidence, accessibility requirements, and dwelling standards. Record source, date, geography, and applicability. Avoid importing a mix from another location merely because its percentage split looks familiar.

3. Define unit types

For each type, state bedrooms, bedspaces or intended occupancy where applicable, target internal area, accessibility category, tenure, external-space requirement, storage, and any project-specific attributes. Use stable type IDs so a name can change without breaking comparisons.

4. Build scenarios

Create at least a baseline, a demand-led case, and a geometry-led sensitivity case. Keep the total residential area or another controlling input consistent where comparison requires it. If a scenario changes the project target, state that explicitly.

5. Convert the mix into a program

Calculate unit net area, shared residential area, core and circulation allowances, amenities, services, and other uses separately. Do not multiply counts by unit areas and call the result total building area.

6. Test geometry

Place representative units against real frontage, depth, corners, cores, corridors, structure, orientation, and access. A unit-type schedule can appear balanced while producing an unworkable floor plate.

7. Reconcile and report

Compare planned counts with modeled counts, areas, and variance by type. Document which assumption explains each material gap. Present the preferred mix with at least one credible alternate and the condition that would trigger a change.

What data should a unit mix schedule contain?

A unit mix schedule should contain enough information to connect the brief to the model without turning every design attribute into a column. Start with the fields needed for decisions and validation.

Keep shared and non-unit spaces outside the unit table but within the building program. Corridors, stairs, lifts, lobbies, refuse, plant, bicycle storage, shared amenities, management space, and structure all consume area. The gap between unit net area and total residential or building area should be explained through named components or explicit planning factors.

This is also where rounding errors and mixed units surface. If scenario percentages create fractional homes, define the rounding rule and then recheck totals. If target areas come from several standards or briefs, normalize units while preserving the original source value.

Learn how architectural programs can stay connected to design.

How do you test a unit mix against geometry?

Test a unit mix against geometry at increasing levels of detail. Start with area ranges, move to frontage and floor-plate capacity, then place representative units and circulation. Do not wait for a fully resolved plan before discovering that the mix cannot distribute across the building.

Building-level test

Compare total unit net area, shared-area allowance, core, other uses, and gross area against the site's development limits and building concept. Run sensitivity on the efficiency assumption rather than relying on one favorable value.

Floor-level test

Distribute the mix across typical and atypical floors. Check that larger or accessible units have suitable locations, that cores and corridors work, and that repeated floors do not conceal difficult podium, corner, or top-floor conditions.

Unit-level test

Place representative layouts within the actual depth and frontage. Check entry, internal circulation, room relationships, facade access, daylight inputs, storage, external space, and accessibility requirements under the applicable standards.

Portfolio-level test

Reconcile every floor to the scenario. A good typical floor can create the wrong building mix when repeated. Confirm count, tenure, type, and accessibility totals after the full stacking strategy is modeled.

How should housing need, policy, and project goals be reconciled?

Reconcile them by recording each as a distinct constraint or objective. Housing need describes evidence about households and demand. Policy translates public objectives into requirements or decision criteria. The client brief sets project goals. The model reports what the design currently achieves. One should not silently stand in for another.

The UK National Planning Policy Framework says the size, type, and tenure needed for different community groups should be assessed and reflected in planning policy. It names groups with different requirements rather than implying one average home. Project teams should use the policy and evidence applicable to their location, then document how the proposed mix responds. (National Planning Policy Framework, housing supply chapter)

When evidence conflicts, show the conflict. A policy requirement, market study, operator preference, and site geometry may pull in different directions. Create scenarios that isolate the tradeoff, identify the decision-maker, and state what new evidence would change the recommendation.

See why a program spreadsheet becomes design intent when it connects to BIM.

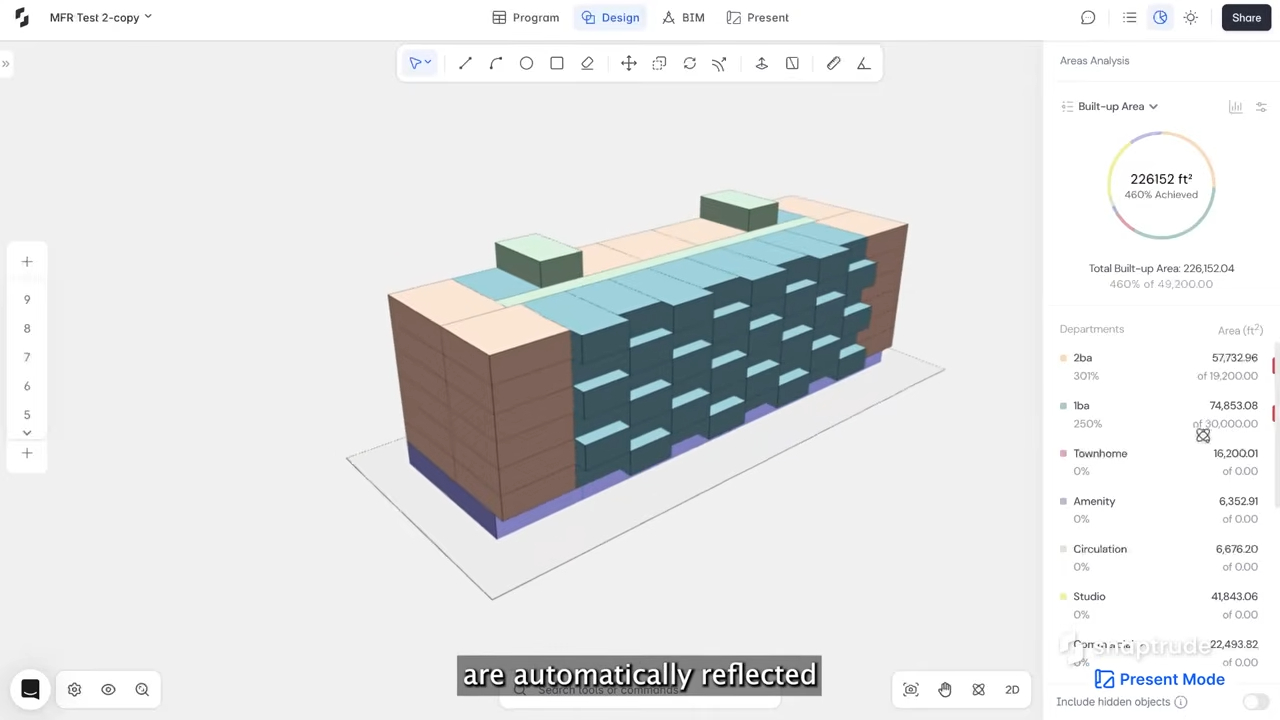

How does Snaptrude support residential unit mix analysis?

Snaptrude's Program Mode supports AI-assisted space planning, area calculations, adjacency planning, and a direct connection from program data to 3D design. Custom space tags can classify spaces in multiple ways. Design Mode supports massing studies and parametric concept modeling. BIM Mode supports building elements, quantities, drawings, schedules, and IFC export.

These capabilities help teams keep unit definitions, counts, areas, and building geometry in one connected workflow. A scenario can be evaluated against the model rather than staying in a separate spreadsheet. The team remains responsible for source evidence, planning interpretation, market judgment, accessibility requirements, design quality, and professional approval.

References

Housing and economic needs assessment: UK Ministry of Housing, Communities and Local Government guidance. It distinguishes unconstrained housing need from the requirement set after land availability and development constraints are assessed.

National Planning Policy Framework, delivering a sufficient supply of homes: UK government policy. It calls for the size, type, and tenure needs of different community groups to be assessed and reflected in policy.

Guidelines on Dwelling Units in Non-Landed Residential Developments: Singapore Urban Redevelopment Authority. It provides a jurisdiction-specific example connecting upper-bound calculations with site context, infrastructure, layout, design, and unit-size review.

FAQ: Residential Unit Mix Analysis

Q: What is residential unit mix analysis?

A: Residential unit mix analysis compares proposed dwelling types, sizes, tenures, accessibility categories, and target household groups against policy, need, project goals, area, and geometry. It creates several traceable scenarios rather than one unexplained percentage split. The output should show counts, unit and total areas, assumptions, evidence, variance, and why the preferred mix suits the project.

Q: What data is needed to create an apartment unit mix?

A: Gather applicable housing-need evidence, planning policy, client and tenure goals, market evidence, accessibility requirements, dwelling standards, site capacity, and building constraints. Define every unit type by stable ID, occupancy basis, target area, tenure, accessibility category, and count. Also include shared program, cores, circulation, services, and an explicit, traceable net-to-gross basis.

Q: Should unit mix be based on market demand or planning policy?

A: It should respond to both where they apply, while keeping their roles distinct. Market evidence can inform demand and product strategy. Planning policy may establish requirements or decision criteria. The client brief adds project objectives, and geometry tests delivery. When inputs conflict, compare scenarios, identify the decision-maker, and document which evidence or approval would resolve the tradeoff.

Q: How many unit mix scenarios should be tested?

A: Test enough scenarios to expose the decision's material tradeoffs. A practical minimum is a baseline, a demand- or policy-led case, and a geometry or sensitivity case. More scenarios are useful only when they represent credible alternatives. Keep controlling inputs consistent across comparisons and explain any change in total area, efficiency, standards, or project targets.

Q: Why can the same residential area produce different unit counts?

A: Counts change with average unit size, mix, accessibility requirements, floor-plate proportions, facade, cores, corridors, structure, shared amenities, services, and the definition of residential area. A calculation based only on net unit area can overstate yield. Compare complete programs and place representative unit types within real geometry before treating the count as credible.

Q: How does Snaptrude help with residential unit mix analysis?

A: Snaptrude connects program data, area calculations, space planning, 3D design, quantities, and schedules. Teams can define and compare unit scenarios, then test counts and areas against building geometry in one environment. Snaptrude does not replace local policy, market, accessibility, or professional review. Users must verify the evidence and rules governing the proposed mix.

Explore Snaptrude with three evidence-backed unit mixes and let the building geometry reveal which tradeoffs are real.
