TL;DR

Architectural programming targets are planned area, count, and relationship goals assigned to the correct level of a space program. A trustworthy system separates targets from modeled actuals, defines how lower-level values roll up, preserves deliberate overrides, and keeps measurement classifications such as usable or gross area explicit.

What are architectural programming targets?

Architectural programming targets are the planned requirements used to guide and evaluate a design before and during spatial development. They can describe total area, usable area, room area, room count, department allocation, building allocation, or other project-specific goals.

The challenge is not entering a number. It is assigning the number to the correct grain. A project target may set the total building size. A department target may allocate a portion of that total. A room-type target may define ten rooms at a target area each. An individual room can carry its own exception. If these levels are mixed, totals change unexpectedly and reviewers cannot tell whether a variance is intentional.

GSA BIM Guide 05 describes spatial program requirements as an important input during pre-design and says spatial information can be used to compare the design with the original program. It also identifies name, number, area, and volume as common data attached to space objects. That is the core of target tracking: connect program requirements to measurable model objects while keeping the two roles distinct. (GSA BIM Guide 05)

Architectural programming targets usually belong to five grains:

1. Project: Overall area, count, capacity, or cost objective

2. Building or phase: Allocation across separate assets or delivery stages

3. Department or functional group: Program share for a service or team

4. Space type or label: Repeated requirement such as classroom, office, or exam room

5. Individual object: A specific room or space with a documented exception

The same value should not automatically appear at every grain. Each target needs a definition, unit, owner, roll-up rule, and review status.

Why do area and count targets become confusing?

Area and count targets become confusing when systems infer meaning, duplicate values across levels, or mix planning allowances with measured geometry. The interface may still show a neat total, but the number no longer has a clear lineage.

Four problems are common.

Automatic classification: A new space may be counted as net, gross, rentable, or another category without the user confirming the applicable rule. That creates false confidence because area definitions vary by standard, project, and jurisdiction.

Silent double counting: A department target and the targets of its rooms may both contribute to the same total even though the department value was intended as an override.

Moving targets: If an individual room target duplicates whenever the room is copied, the rolled-up label total may change. That behavior is correct only if the copy represents an added program requirement.

Mixed actuals and assumptions: A planning factor for circulation may be reported beside modeled circulation without showing which value is hypothetical.

The GSA's National Business Space Assignment Policy provides formal area definitions for federal property measurement. Its 2025 policy, for example, defines Gross Area by reference to the outside of exterior enclosing walls and identifies which enclosed and partially enclosed areas are included. The practical lesson is not to apply one federal rule everywhere. It is to state the governing definition before using an area label. (GSA National Business Space Assignment Policy)

Read how area-panel filters can make the basis of a reported number visible.

Explore Snaptrude to connect space-program goals with measurable design geometry without maintaining a separate model of the brief.

How should architectural programming targets be structured?

Architectural programming targets should be structured from broad allocation to specific requirement, with one explicit rule for how each level relates to the next. Use roll-ups for calculated totals, overrides for approved independent targets, and separate fields for modeled actuals.

The default behavior should be understandable from the label. A calculated total should look calculated. An inherited target should identify its source. An override should show who set it and why. Mixed values should stay mixed rather than collapsing into a misleading group value.

Use separate semantic fields for:

• Target area

• Modeled area

• Variance

• Target count

• Modeled count

• Measurement classification

• Planning factor

• Approval status

This structure lets one schedule show the whole picture without pretending that each column has the same authority.

When should a target roll up and when should it be overridden?

A target should roll up when the lower-level requirements are the approved source of the total. It should be overridden when a higher-level allocation is an independent decision that must remain stable as lower-level work changes. The system should never guess silently.

Use this decision sequence:

1. Ask whether the parent target was calculated or approved independently.

2. If calculated, preserve the formula and show the contributing children.

3. If independently approved, store it as an override with owner and rationale.

4. Continue calculating the child sum as a separate comparison value.

5. Report the variance between the parent override and child sum.

6. Allow a reviewer to remove the override and return to the roll-up.

For example, a department may have an approved 20,000-square-foot target while its current room-type targets sum to 18,700 square feet. Replacing the department target with the child sum hides a 1,300-square-foot planning allowance or unresolved requirement. Adding both values into a project total double counts the same scope. The correct view keeps the approved target, calculated child total, and variance separate.

This logic also applies to counts. Ten repeated rooms at one area each can roll into a space-type target. If one room has a larger target for equipment or accessibility, the exception should change the calculated type total without rewriting the standard target for the other nine.

How should actual area differ from a planning assumption?

Actual area should report measured geometry in the current design state. A planning assumption should estimate space that has not yet been drawn or classified. Both are useful, but they answer different questions and should not share one value.

Suppose a department has been drawn but its detailed circulation has not. A planning factor can estimate circulation for feasibility. Once the corridor geometry exists, the model can report actual circulation separately. Replacing the assumption automatically may be useful, but only after the team defines the transition and confirms that the two values use compatible boundaries.

The U.S. Courts Design Guide provides an example of programming specificity. Its chapters describe functions, users, capacities, space allocations, planning issues, and adjacency or circulation requirements for court facilities. A program is therefore more than an area total. It is a connected set of functional and spatial requirements that need their own grains and definitions. (U.S. Courts Design Guide)

See how efficiency factors can remain explicit during feasibility studies.

How do you audit architectural programming targets?

Audit architectural programming targets by checking definition, grain, lineage, classification, and variance before reviewing whether the design meets them. A clean total is not enough if the number cannot be explained.

Use this review checklist:

1. Definition: Does every target state what it measures?

2. Unit: Are area, count, capacity, and percentage fields typed correctly?

3. Grain: Is the target assigned to project, building, department, type, or object?

4. Lineage: Can a reviewer see whether it was imported, calculated, inherited, or overridden?

5. Classification: Is the applicable net, gross, rentable, usable, or custom rule explicit?

6. Roll-up: Do child values contribute once and only once?

7. Override: Does every independent parent target retain owner and rationale?

8. Actual: Is modeled geometry reported separately from the target?

9. Variance: Can reviewers trace the gap to specific program levels?

10. Change: Does copying, deleting, reclassifying, or moving a space produce the expected result?

Repeat the audit after a program import, a major layout change, and any change to area classification. Those are the moments when a correct value can become a stale or duplicated one.

How does Snaptrude support architectural programming targets?

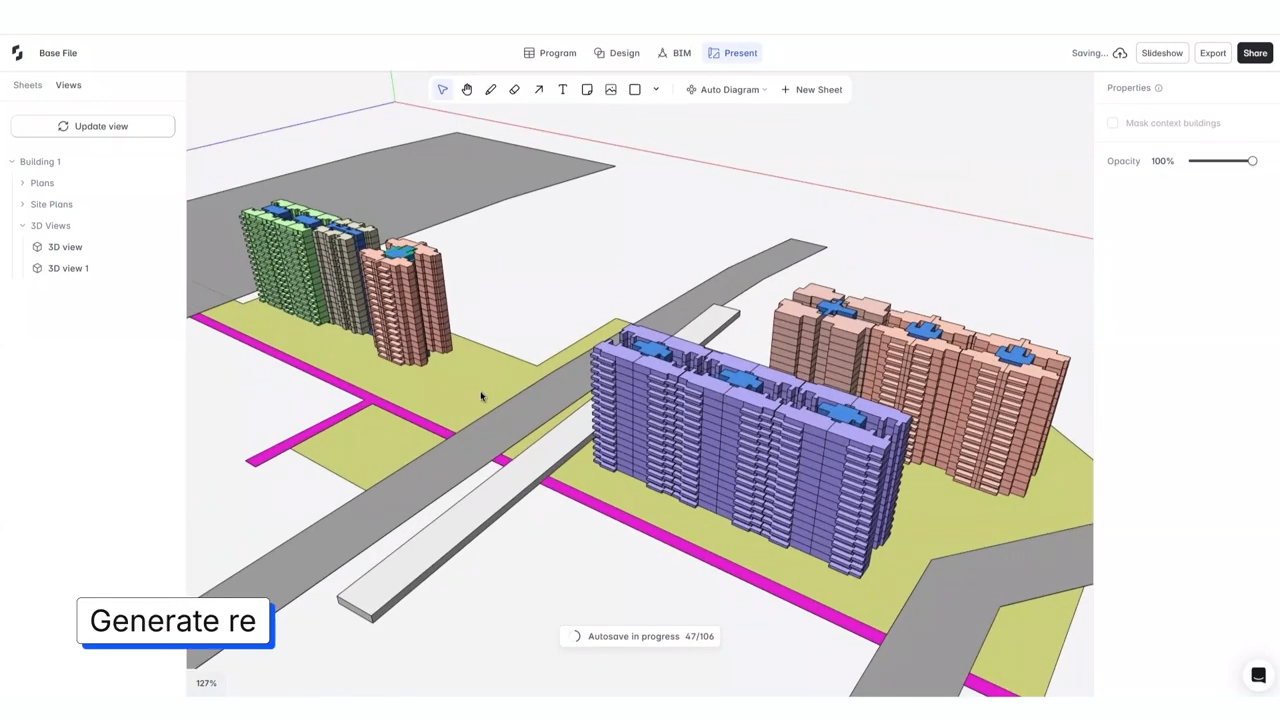

Snaptrude's Program Mode supports AI-assisted space planning, area calculations, adjacency planning, and a connection from program data to 3D design. Design Mode supports concept modeling and real-time visualization. BIM Mode supports building elements, quantities, plans, sections, elevations, schedules, and IFC export.

These capabilities let teams compare program information with the live model rather than maintain the brief as a detached spreadsheet. Custom space tags can classify spaces in multiple ways, while area information can support design review. The team still needs explicit measurement definitions, target grains, and override rules because software should not invent the meaning of a project's area program.

See how custom tags can classify a space across more than one program hierarchy.

References

GSA BIM Guide 05: U.S. General Services Administration. It explains the role of space objects in spatial-program validation, area comparison, and model-based analysis.

National Business Space Assignment Policy: U.S. General Services Administration, August 2025. It defines federal building-level area categories and the geometry included in Gross Area.

U.S. Courts Design Guide: Administrative Office of the U.S. Courts and GSA, revised 2021. It connects functions, users, capacities, space allocations, and adjacency or circulation requirements in a detailed facility program.

FAQ: Frequently Asked Questions

Q: What is an architectural programming target?

A: It is a planned requirement used to guide and evaluate a design, such as total area, department area, room count, capacity, or a relationship between spaces. Every target should identify its unit, program level, source, owner, and calculation rule. It should remain distinct from the actual geometry measured in the current model.

Q: What is the difference between an area target and actual area?

A: An area target states what the design should achieve. Actual area reports what the current model contains under a stated measurement rule. Comparing them produces a variance, but neither should overwrite the other. Keeping both values visible lets teams see whether a gap comes from the brief, the design, or the measurement classification.

Q: Should department targets equal the sum of room targets?

A: They can, but only when the room targets are the approved source of the department total. A department may also carry an independent allowance or cap. In that case, preserve the department target as an override, calculate the room sum separately, and show the variance instead of replacing or adding the values silently.

Q: How should net and gross area be handled in a program?

A: Define the governing measurement standard and assign each area value to its correct classification. The same geometry may contribute to more than one calculation, but the rules must be explicit. Keep modeled actuals separate from planning factors used before circulation, walls, or other elements are fully drawn.

Q: How does Snaptrude connect program targets to design?

A: Snaptrude's Program Mode supports area calculations, adjacency planning, and a direct connection to 3D design. Teams can organize program information, develop geometry, and compare model outputs in one project environment. Users should still define the target hierarchy, measurement classes, and approval rules that apply to their project.

Q: Can Snaptrude import an architectural program?

A: Snaptrude Program Mode supports AI-assisted architectural programming and connects program data to 3D design. Snaptrude AI is in private beta and has demonstrated a programming agent that can read or import program information. Any imported requirements should be reviewed for units, hierarchy, definitions, and target ownership before the design relies on them.
