3.36.0

“Auto Adjacency Diagrams turn complex adjacency logic into clear, presentation-ready visuals. It’s the fastest way to validate program relationships and communicate design intent.”
– Shamanth Thenkan, Product Specialist

What’s New

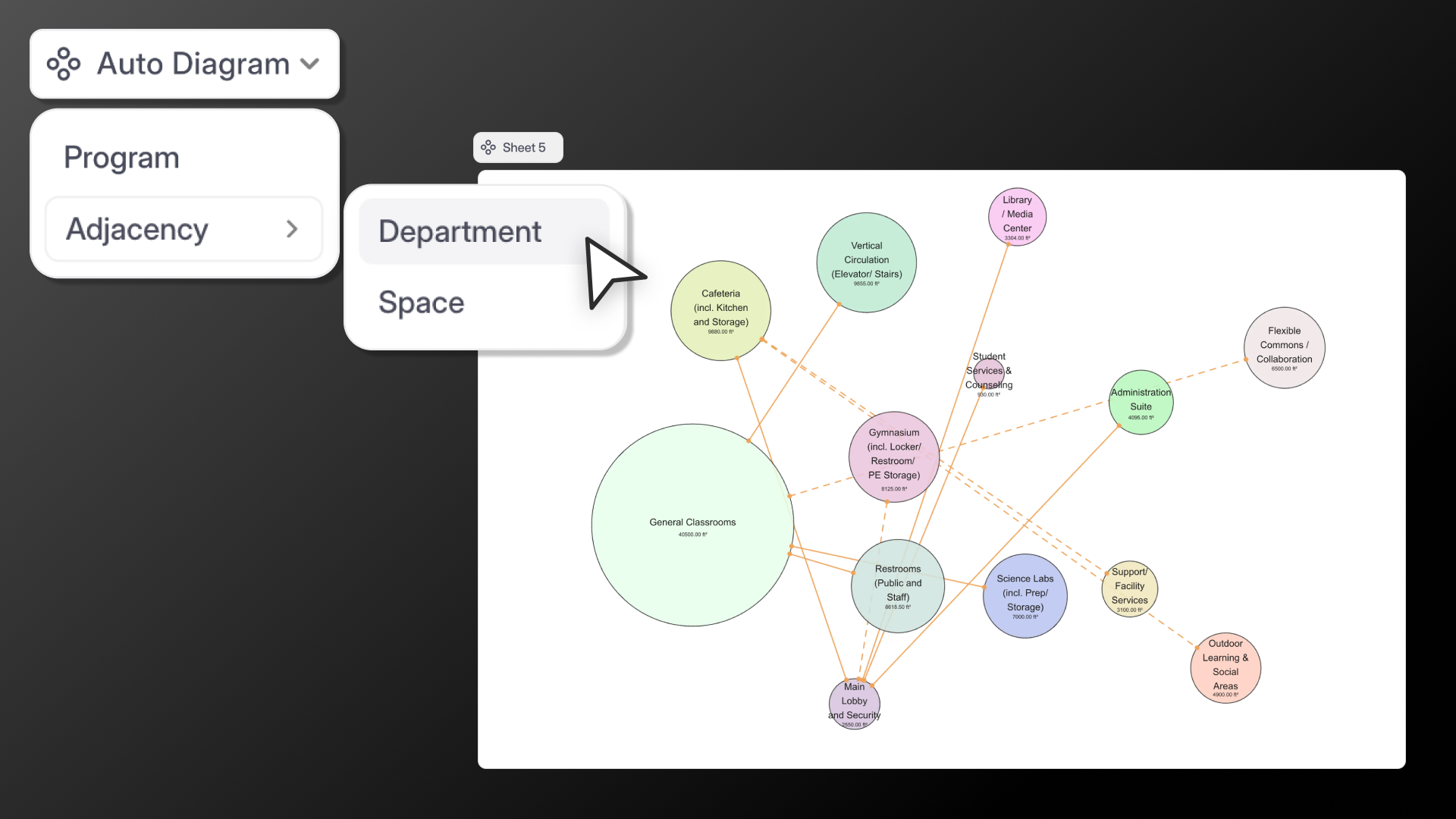

Snaptrude now auto-generates Adjacency Diagrams in Present Mode, instantly visualizing relationships between departments and spaces. These diagrams help you validate spatial logic, catch adjacency issues early, and eliminate hours spent drawing bubble diagrams manually.

‍

Why This Matters

For first-time users: See a clear picture of how your program connects, within seconds of generating it.

For experienced users: Save time on adjacency reviews, iterate faster, and produce cleaner diagrams for presentations and client discussions.

Key Features

• Automatic Generation: Department-level and space-level adjacency diagrams generate when you enter Present Mode.
• Manual Refresh: Click Update Diagrams anytime to sync with your latest program changes.
• Multiple Styles: Choose bubble, rectangle, or rounded-rectangle layouts.
• Supports Large Projects: Progressive generation for big programs with hundreds of spaces.
• Export Ready: Export diagrams as PDF, PNG, JPG, or SVG.

‍
